Escape Hatch

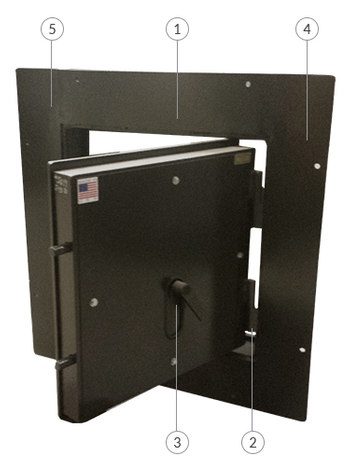

Escape hatch diagram
  • 6" Channel Iron Frame
  • Inswing
  • Inside Handle
  • Full Inside Flange
  • Textured Black Paint

Other options are extra.

You will need a 29 1/2" x 29 1/2" RO, and that will give you a 24" x 24" ID, which is big enough for a 300 lb man to fit through.

open esc

Inside View

  • Note, the full inside flange that you bolt into place
  • All are in swings with lever handle
Solid escape hatch

Side View

  • Does not come with a lock
  • Locks are optional, and they would use a key if desired
rear view of escape hatch

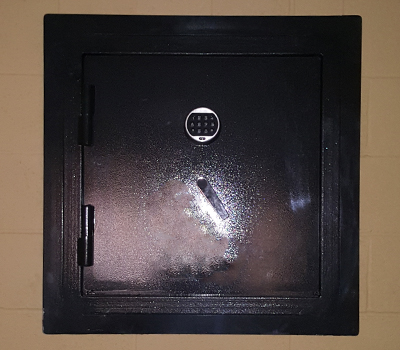

Outside View

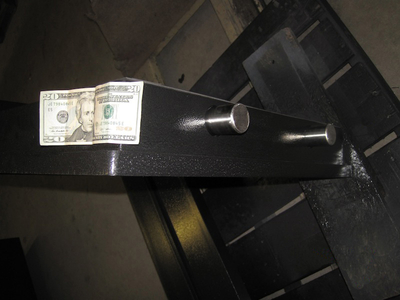

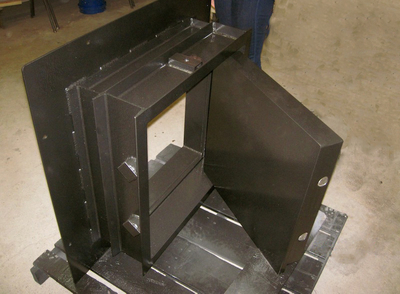

Custom Escape Hatch

custom made escape hatch
esca
c
Custo
